BMW M5 E60 & M6 E63/E64 SMG III Hydraulic Pump Rebuild – 21542282998

BMW M5 and M6 SMG III Hydraulic Unit Rebuilding

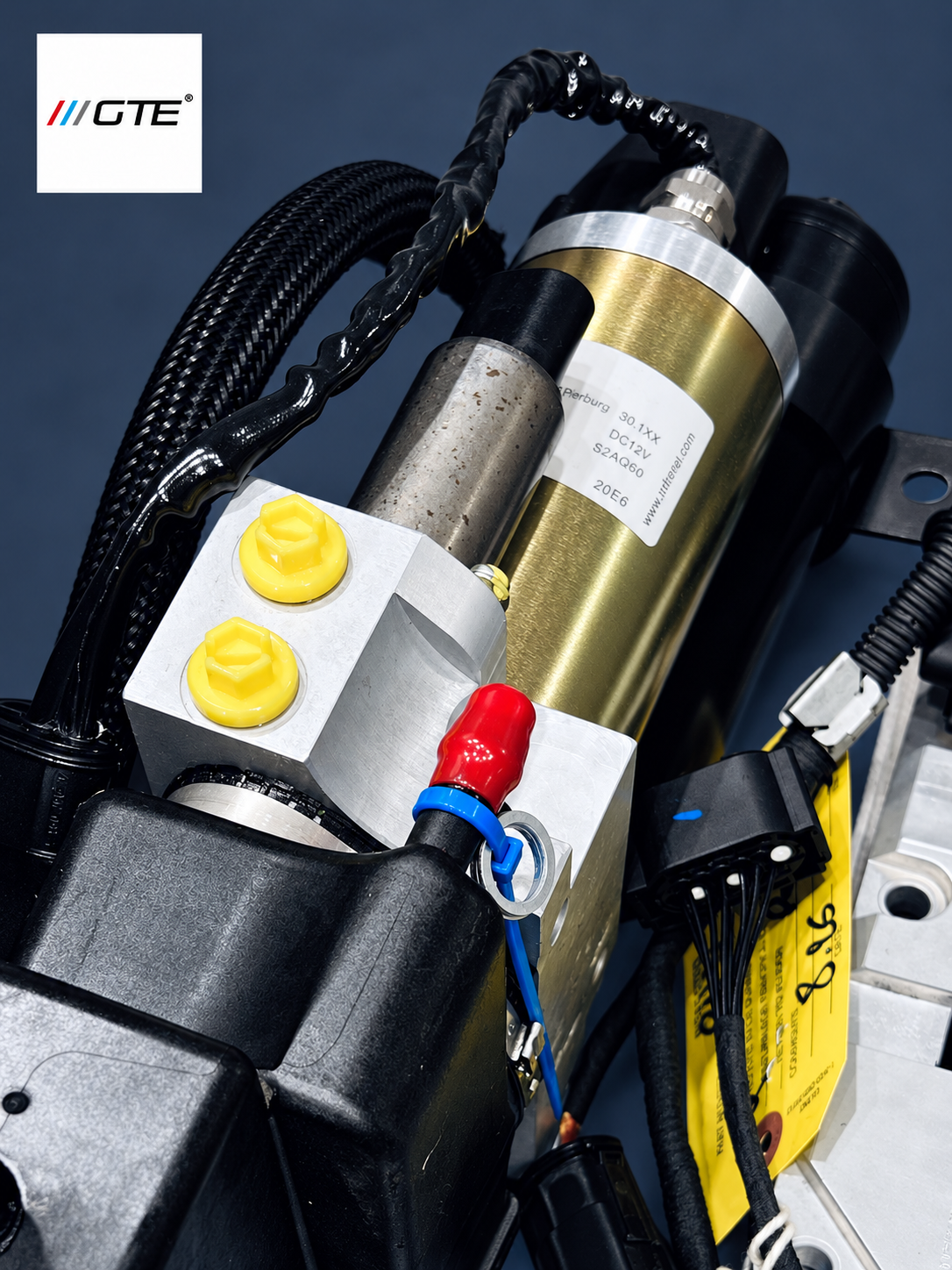

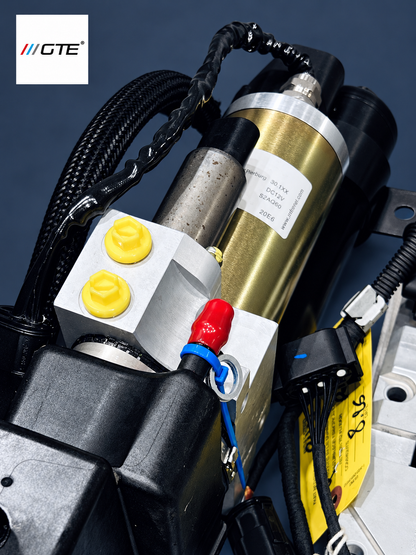

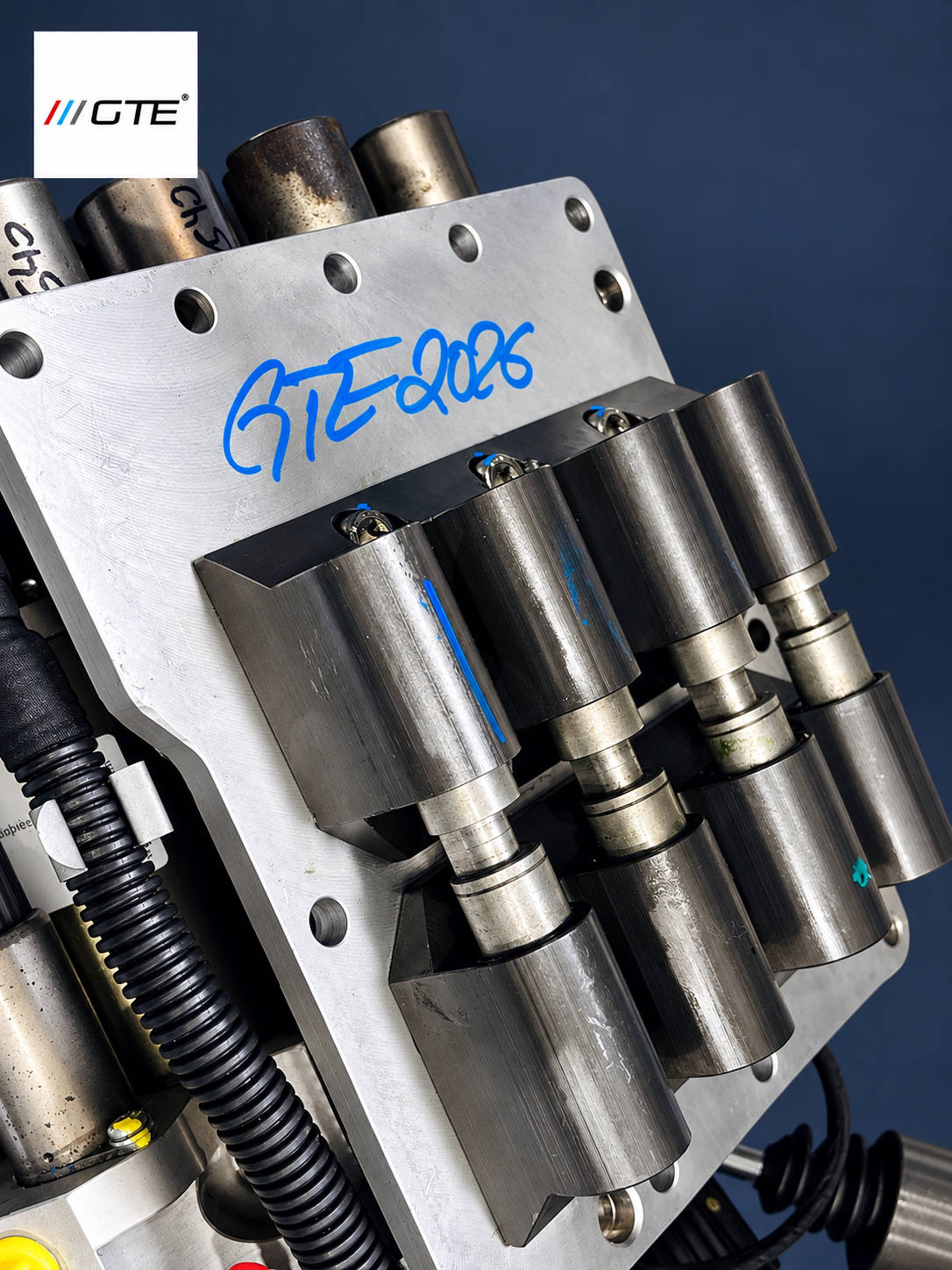

Professional rebuilding of your original BMW M5 and M6 SMG III hydraulic pump assembly. GTE Engineering replaces the pump motor and slave cylinder, rebuilds the gear-position sensor strip, renews the seals and tests the solenoid valves. Our service supports owners and professional workshops retaining the original seven-speed Sequential Manual Gearbox system.

What the Rebuild Includes

Assessment and additional work: Work beyond the listed rebuild scope is quoted for approval. A functioning original clutch slave solenoid may be reused following assessment by the installer; replacement is not included in this service.

Vehicle Application

• BMW M5 E60 Sedan: 2006–2010 applications equipped with the S85 5.0-liter V10 and seven-speed SMG III.
• BMW M6 E63 Coupe and E64 Convertible: 2006–2010 SMG III applications.

Production dates and market specifications vary. Match the VIN, hydraulic-unit label and motor reference before ordering. This listing covers the SMG III hydraulic system; an E46 M3 SMG II unit requires the separate SMG II rebuild service.

BMW and Getrag Part References

How the Send-In Service Works

1. Verify your part before shipping. Send component-label photographs, stored fault codes and symptoms through our quote request form. Confirm which hydraulic and slave-cylinder components should accompany the unit.
2. Ship your original assembly. Follow our shipping instructions and include your order information.
3. Assessment and rebuilding. GTE assesses the submitted components, confirms any additional work requiring approval, and completes the agreed rebuild and solenoid testing.
4. Professional installation. Your installer follows BMW procedures for installation, hydraulic bleeding, applicable adaptations and vehicle checks.

Technical Questions

Is this an exchange unit or a rebuild of my own assembly?

This is a send-in rebuild service. Ship your original unit to GTE Engineering; we rebuild and return it. No core charge applies.

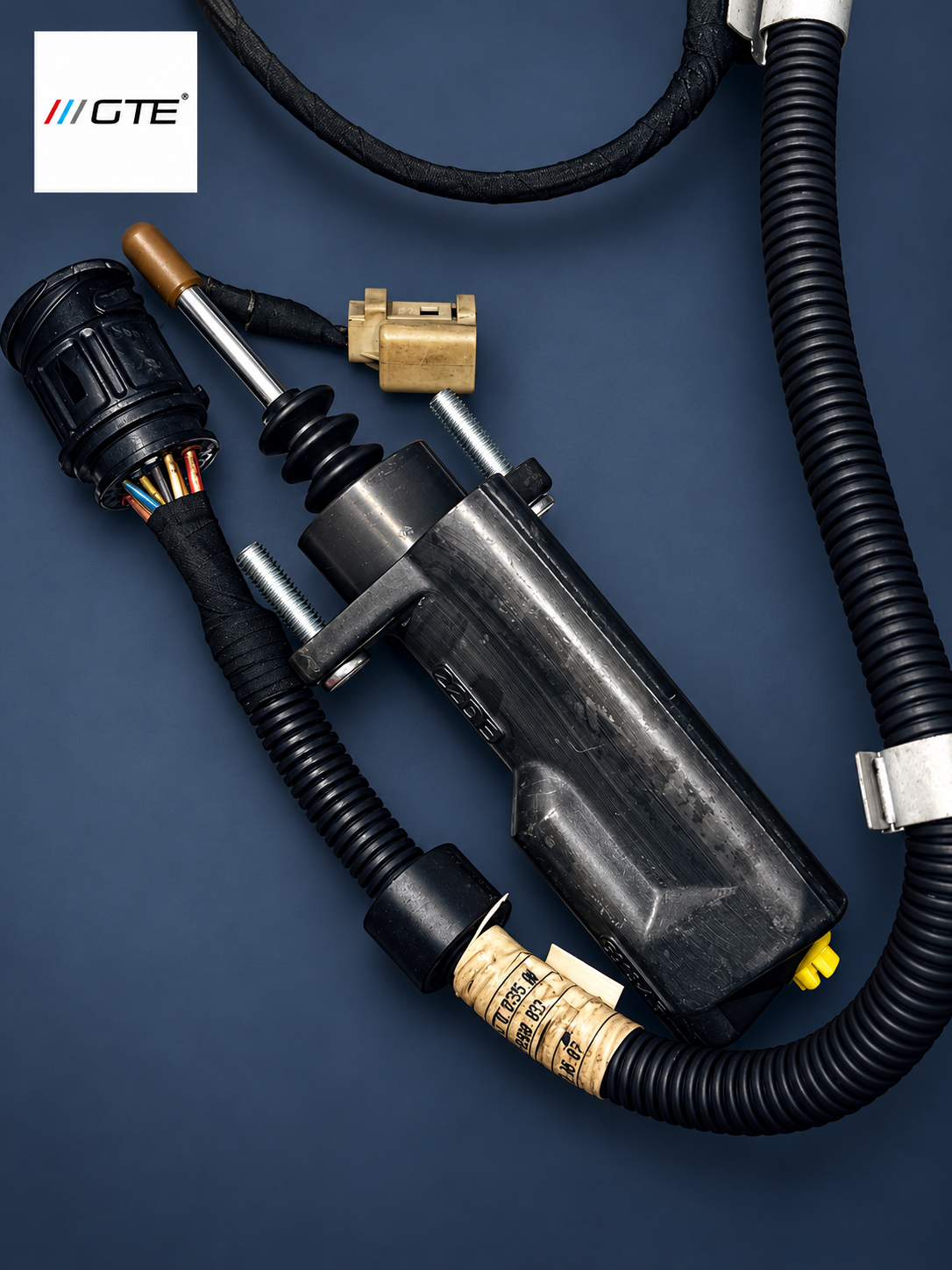

Does the new slave cylinder include a new clutch slave solenoid?

No. The new slave cylinder is included, but the separate clutch slave solenoid is excluded. Your installer should assess the original solenoid before reuse. Contact GTE if it is faulty or missing so any additional work can be quoted.

Is the gear-position sensor strip replaced or rebuilt?

The existing gear-position sensor strip is rebuilt and fitted with a new connector, as listed in the service scope.

Will rebuilding the hydraulic unit resolve every SMG fault?

SMG warnings and shifting faults require diagnosis. The installer should check electrical supply, relay operation, wiring, hydraulic leaks and stored faults, together with clutch condition and the applicable adaptations. Repairs outside the submitted assembly may be required.

What warranty applies?

Under GTE's published policy, hydraulic-unit rebuilds carry a 90-day limited warranty covering workmanship and rebuild-related materials, subject to the installation requirements, conditions and exclusions in our Warranty and Rebuild Coverage.

Specialist Support from GTE Engineering

Our in-house workshop combines hydraulic-system rebuilding with clutch and transmission expertise. We support professional installers with component identification and service guidance throughout the rebuild process.

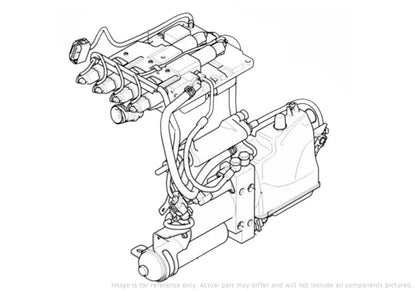

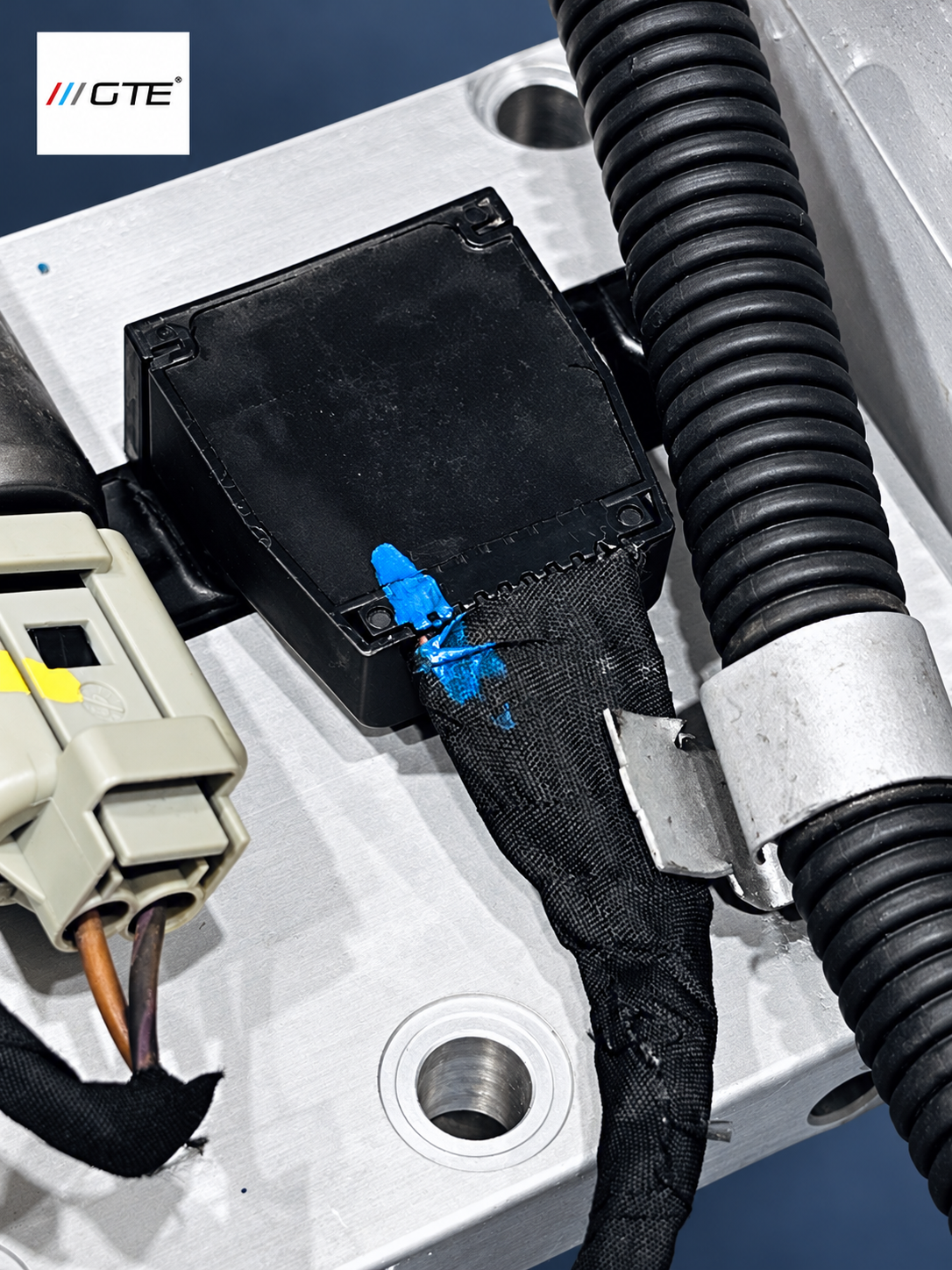

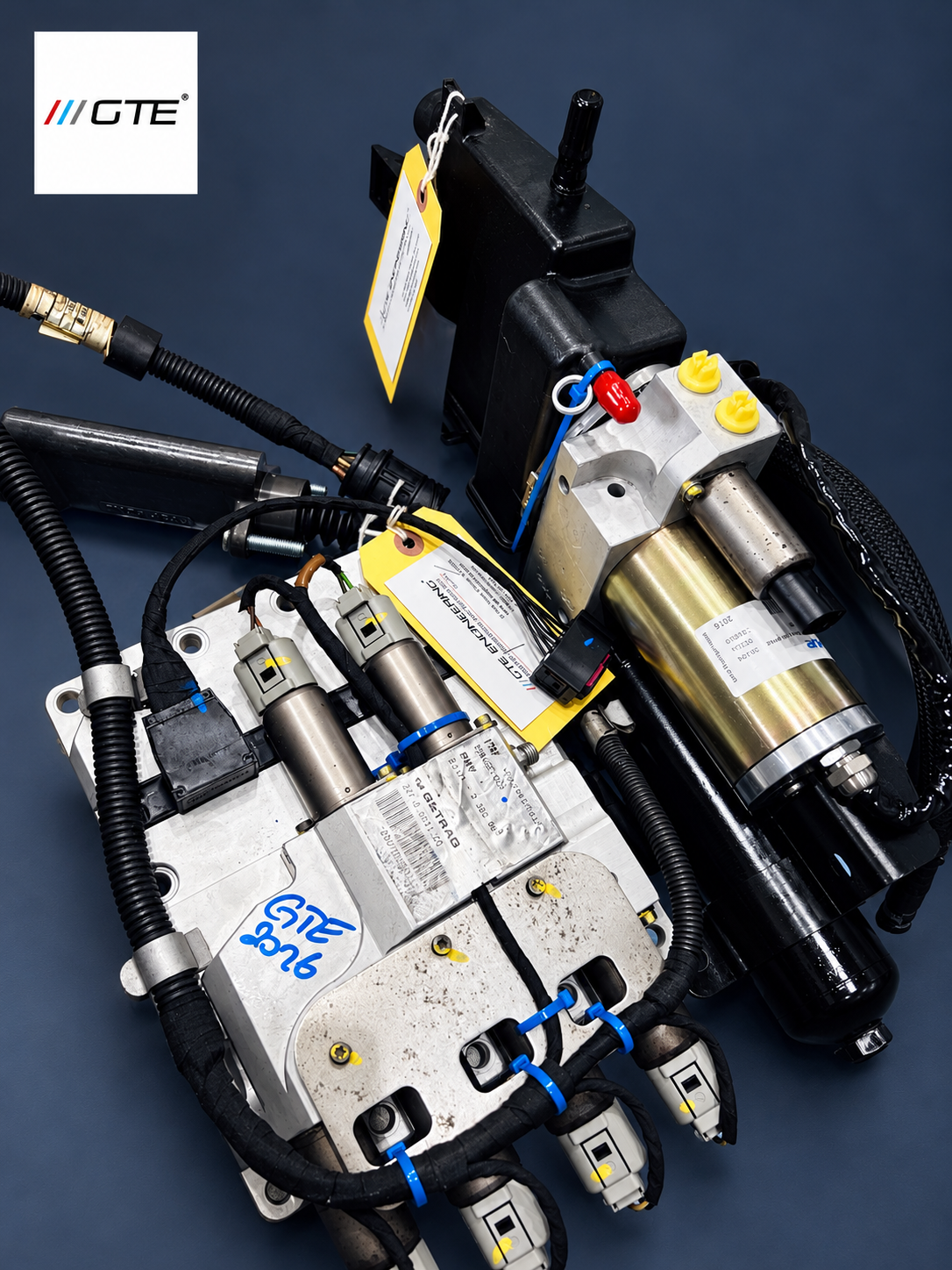

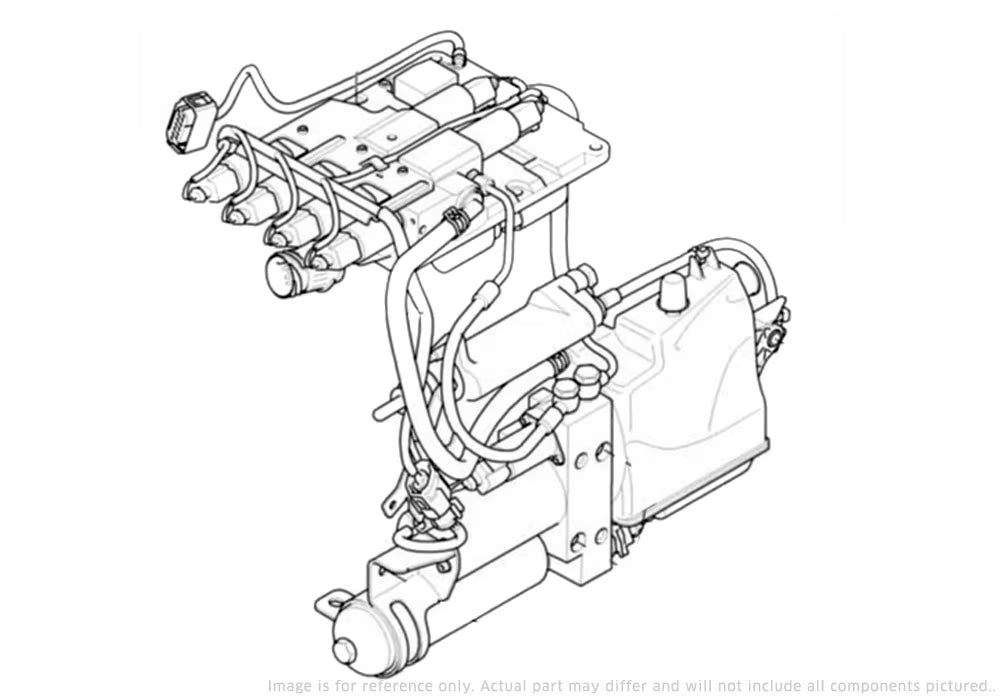

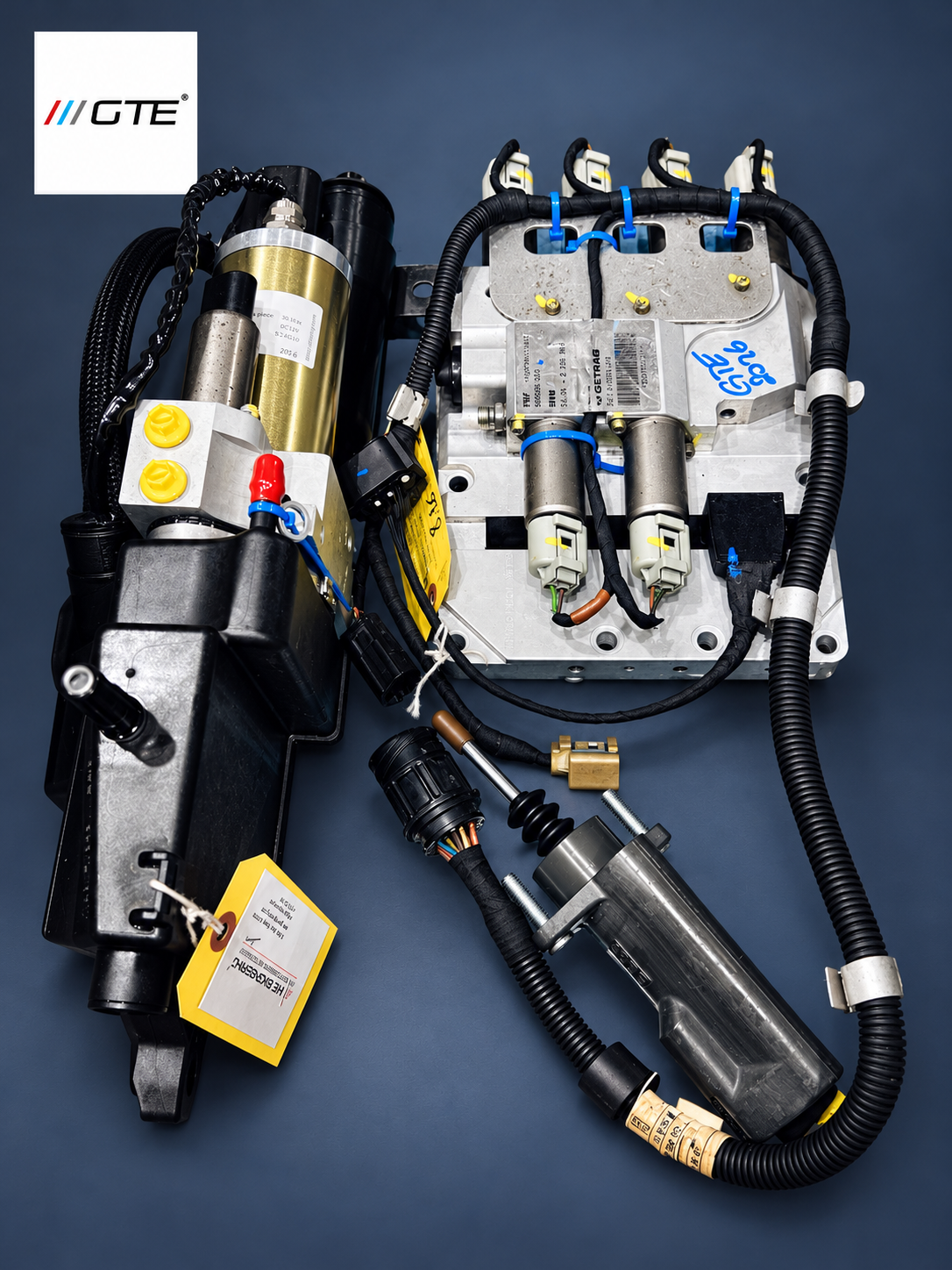

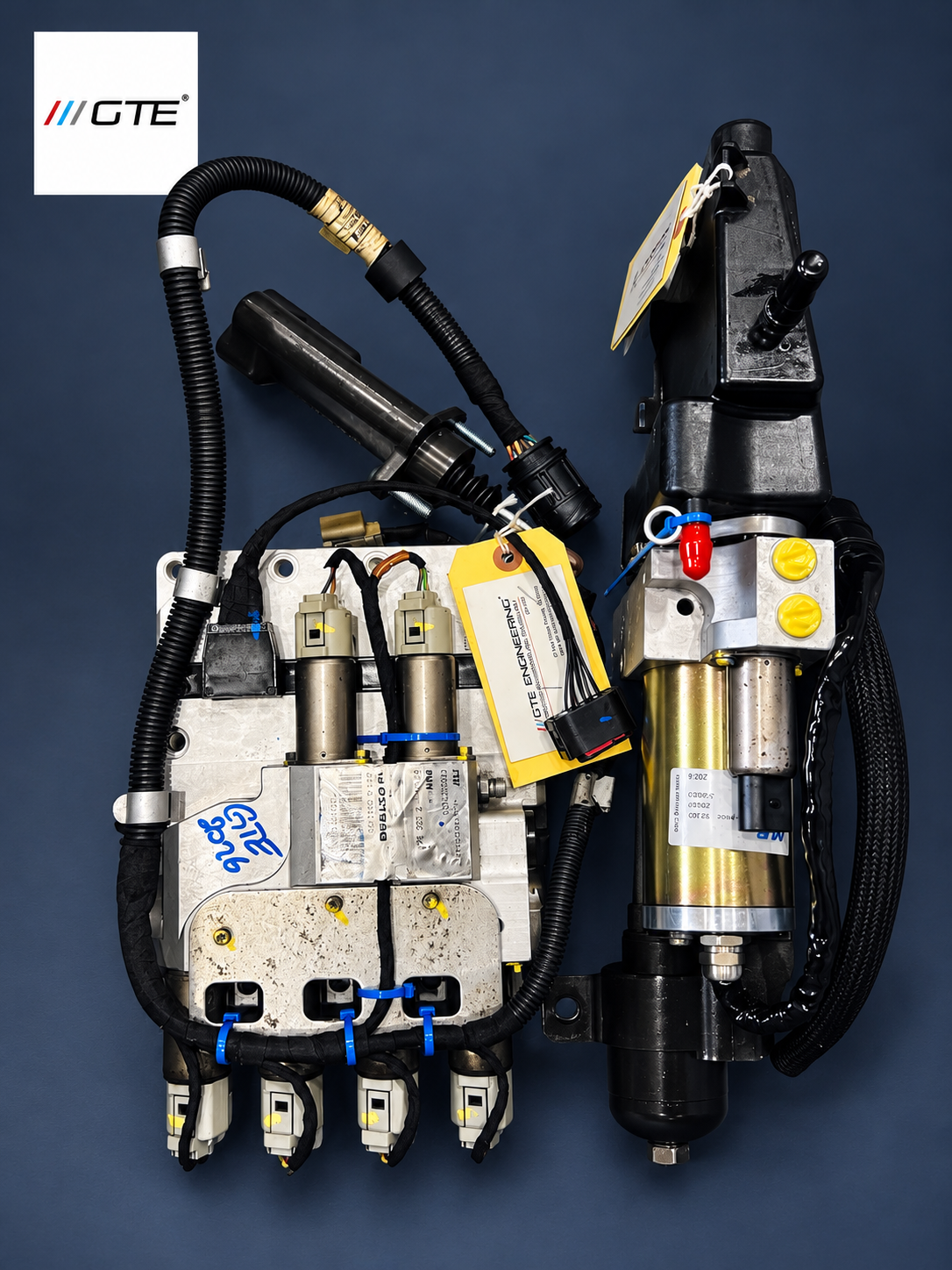

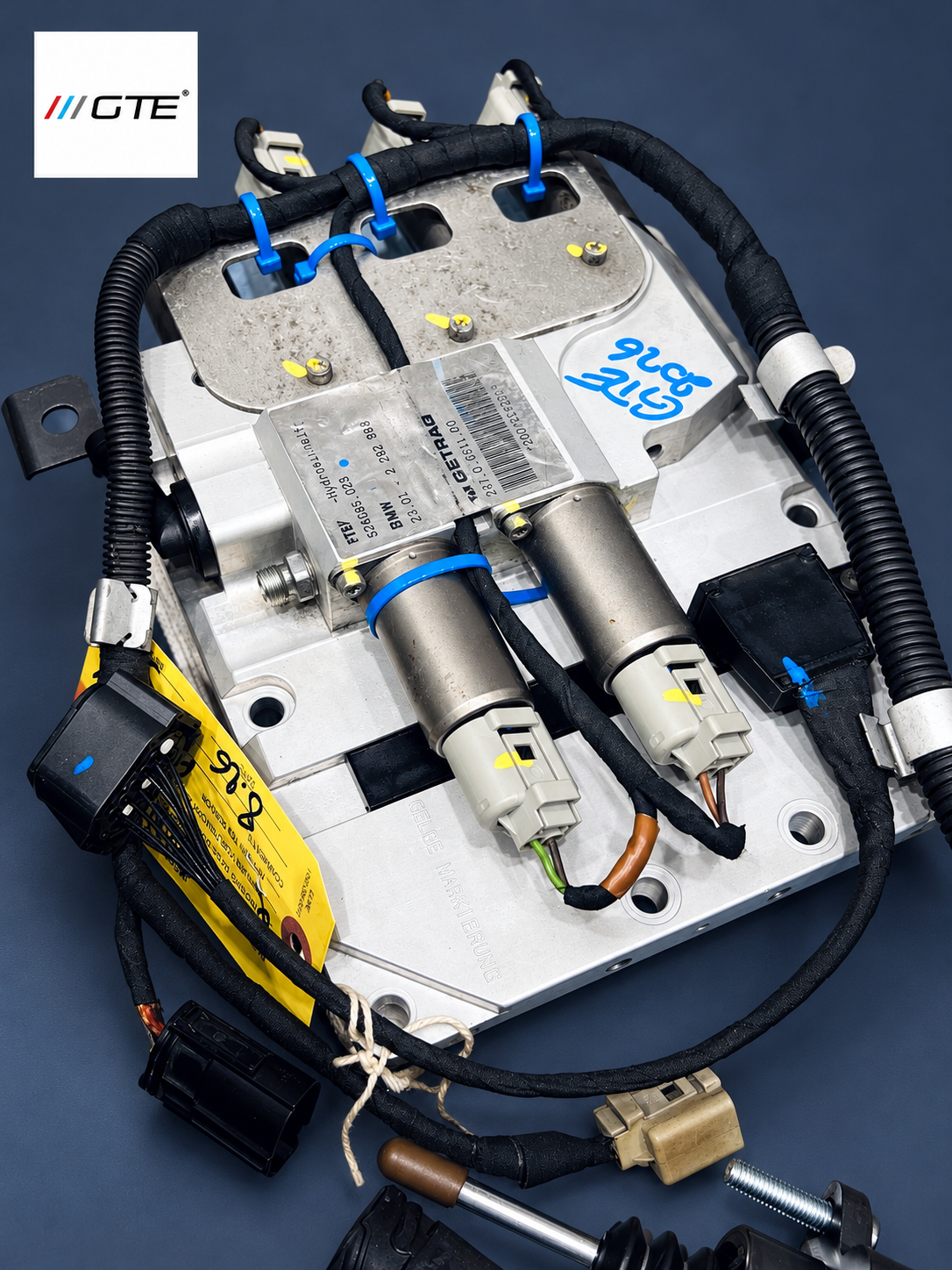

Gallery information: Photographs illustrate SMG III components and rebuild work. The written service scope determines what is included; additional components shown in a photograph are supplied or serviced only when specified in your quotation.
